VOCs and Odor Removal

New life to the PCR pellet

Heterogeneous materials and contaminations can compromise the quality of the extruded granule due to the accumulation of unwanted materials on the filter, leading to the development of by-products and bad odor.

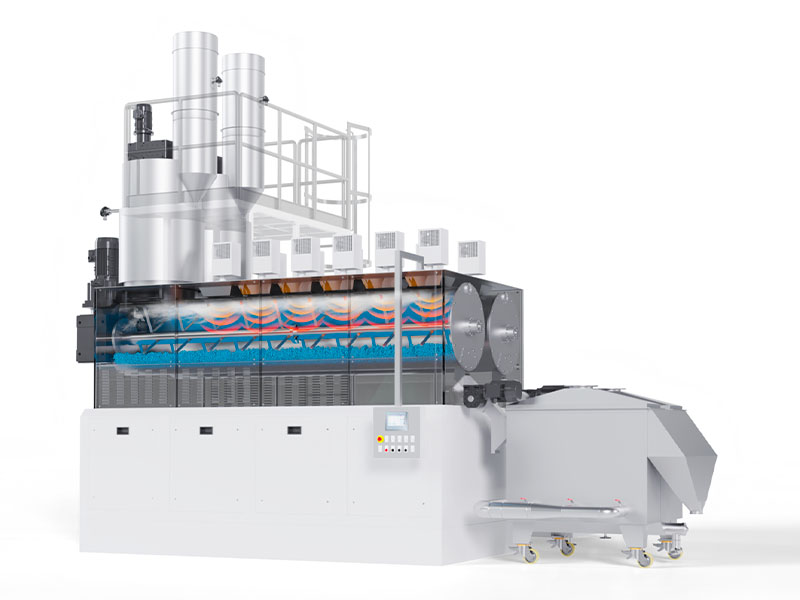

Up-cycling: Bandera has developed a system for the removal of humidity and volatile organic components through a patented microwave system that acts on pellet, thus obtaining a secondary raw material suitable for even the most demanding industries.

The process is able to work in-line and off-line to optimize work times and reduce machine downtime.

VOC & ODOR REMOVAL

GET YOUR PERSONAL CONSULTATION

Searching for the right solution? We are happy to consult with you which solutions best fit your needs.

Benefits

Reduced overall dimensions

Compact device, with a horizontal development, it doesn’t require large spaces in height.

Reduced process time

Effective even at low residence times.

Modular

Modular unit capable of increasing its flow rate and process times with the addition of an extra module.

High effectiveness

Thanks to the patented microwave stripping system and the horizontal layout, it is possible to remove odors and humidity more effectively and in less time than traditional systems.

TEST YOUR MATERIAL, PROVE THE RESULT,
LEAD THE MARKET.

Searching for the right solution? We are happy to consult with you, which solutions best fit your needs.

Models

Model
Modules
Flow rate at 2h (Kg/h – lb/h)
Flow rate at 4h (Kg/h – lb/h)
Flow rate at 6h (Kg/h – lb/h)

XTRACT 2.200

1

1,440 – 3174.6

720 – 1587.3

480 – 1058.2

XTRACT 4.400

2

3,000 – 6613.9

1,500 – 3307.0

1,000 – 2204.6

XTRACT 6.600

3

4,500 – 9920.8

2,250 – 4960.4

1,500 – 3306.9

XTRACT 10.000

4

6,000 – 13227.7

3,000 – 6613.8

2,000 – 4409.0

Model
Modules
Flow rate at 2h (Kg/h – lb/h)
Flow rate at 4h (Kg/h – lb/h)
Flow rate at 6h (Kg/h – lb/h)

XTRACT 2.200

1

1,440 – 3174.6

720 – 1587.3

480 – 1058.2

Model
Modules
Flow rate at 2h (Kg/h – lb/h)
Flow rate at 4h (Kg/h – lb/h)
Flow rate at 6h (Kg/h -lb/h)

XTRACT 4.400

2

3,000 – 6613.9

1,500 – 3307.0

1,000 – 2204.6

Model
Modules
Flow rate at 2h (Kg/h -lb/h)
Flow rate at 4h (Kg/h – lb/h)
Flow rate at 6h (Kg/h – lb/h)

XTRACT 6.600

3

4,500 – 9920.8

2,250 – 4960.4

1,500 – 3306.9

Model
Modules
Flow rate at 2h (Kg/h – lb/h)
Flow rate at 4h (Kg/h – lb/h)
Flow rate at 6h (Kg/h – lb/h)

XTRACT 10.000

4

6,000 – 13227.7

3,000 – 6613.8

2,000 – 4409.0
